Home Heat Transfer ZX-1350T Cutting Plotter
  • 1350T 1
  • 1350T 2
  • 1350T 5
  • 1350T 6

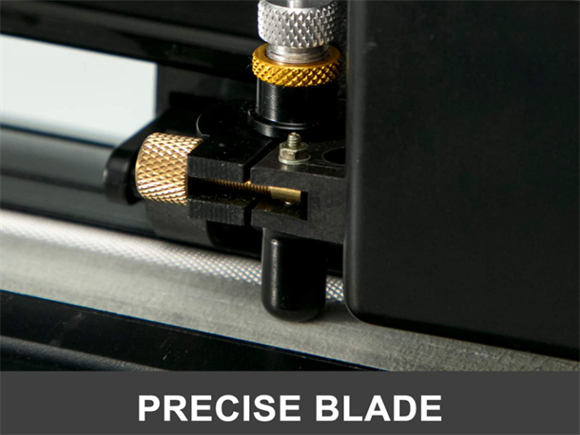

  • 1350T 7

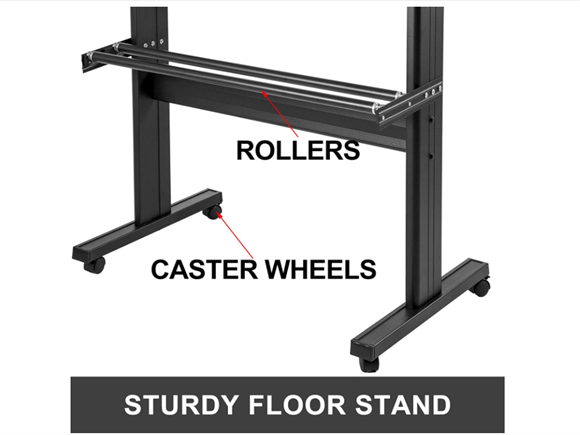

  • 1350T 8
  • 1350T 1
  • 1350T 2
  • 1350T 5
  • 1350T 6
  • 1350T 7
  • 1350T 8

ZX-1350T Cutting Plotter

ZX Vinyl Cutter 53 inch Plotter Machine 1340mm Paper Feed Vinyl Cutter Plotter Signmaster Software Sign Making Machinewith Stand

Highlights

  • ★★PRODUCT SIZE- 53 inch vinyl cutter with maximum paper feed of 1350 mm (53.1 inch). Maximum cutting width: 1260 mm (49.6 inch)
  • ★★FLEXIBLE CUTTING- Plotter machine cutter pressure: 10-500g. Cutting speed: 10-800 mm per second. Both adjustable
  • ★★HUMANIZED DESIGN- Backlight LCD display for easier handling the working process of sign cutting machine. Emergency stop/start function allows stop and restart

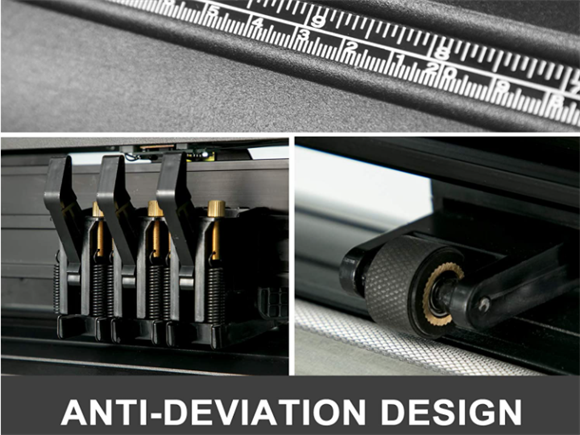

  • ★★4 ROLLERS- 4 pinch-rollers on this vinyl cutter plotter machine can be adjusted on the guide rail according to different paper width
  • ★★COMPATIBLE TYPE- DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64). NOT compatible with Mac system when used with this cutter
  • CE
  • iSET
  • EMC²
  • RoHS
Request A Quote

Product Parameters

1 2 3 4
Model No. 375T 720T 870T 1350T
Size 14″ 28″ 34″ 53″
Size 375mm 720mm 870mm 1350mm
Number of Pinch Rollers 2 3 3+1 3+2
Max Cutting Width 10″ 24.80″ 30.63″ 49.56″
Max Feed Width 14″ 28″ 34″ 53″
Shipped Weight/KG 11 21 23 28
Packing Size/LWH/CM 65*33*32 100*42*36 117*33*42 164*34*41
Power Requirement AC100-240V 50/60Hz Auto-switching(Worldwide)
Blade Types Standard, Roland Compatible
Pressure/grams 10-500
Max Speed/in/sec 48
Driving Method Stepper Motor
Interface SERIAL, USB
Included Items1 Vinyl Cutter, 3-pack of Blades, Blade Holder, Pen Attachment,
Included Items2 Serial Cable, USB Cable, Power Cable, Sure Cuts a Lot Pro Design & Cut Software
Control Language DM/PL, HP/GL Language
Battery AC-90V-240V 60Hz 60W
Roller Mechanism Fine Grit Feed Rollers
